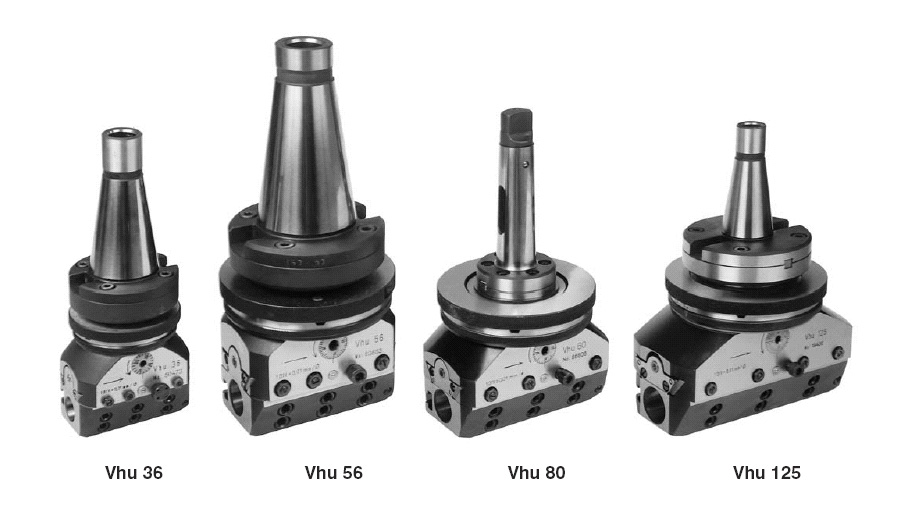

Boring Heads and Accessories / Boring and Facing Heads Narex VHU
Precision Boring of cylindrical holes and machining of external cylindrical surfaces
Automatic slide feeds allows facing, backfacing and taper machining. Feed is derivered from tool rotation.
| Slide motion | Facing diameter | Boring diameter | Slide motion | Toolpost holes | ||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | |
| VHU-36 | 0.12" | 36 | 0 - 9" | 0 - 230 | 0 - 9" | 0 - 225 | 0.12" | 36 | 5/8" | 16 |
| VHU-56 | 2.20" | 56 | 0 - 12.6" | 0 - 320 | 0 - 14" | 0 - 360 | 2.20" | 56 | 1" | 25 |
| VHU-80 | 3.15" | 80 | 0 - 15" | 0 - 380 | 0 - 16" | 0 - 410 | 3.15" | 80 | 1" | 25 |
| VHU-110 | 4.33" | 110 | 0 - 17" | 0 - 430 | 0 - 17.7" | 0 - 450 | 4.33" | 110 | 1" | 25 |
| VHU-125 | 4.92" | 125 | 0 - 24" | 0 - 610 | 0 - 25.6" | 0 - 650 | 4.92" | 125 | 1-1/4" | 32 |
| VHU-160 | 6.30" | 160 | 0 - 27" | 0 - 690 | 0 - 28.3" | 0 - 720 | 6.30" | 160 | 1-1/4" | 32 |
