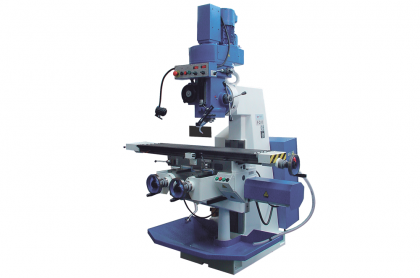

Knee Type Milling Machines / F2V-R
Knee-type milling machine F2VR is designed for milling and drilling operations of small and medium-size components of up to 200 kg weight occurring in all branches of the engineering production.
Milling head with the spindle seated in the slide sleeve can be inclined in the longitudinal plane of the table.
The wide range of speed and feeds enables effective milling of all metals with tools made from a high speed steel or a hardmetal.
ADVANTAGES:
- High torque on spindle
- Continuous set-up feeds in 3 axes by means of a frequency convertor
- Stepless regulation of spindle revolutions by frequency convertor in two revolution ranges
- Spindle in shifting quill efficient for comfortable drilling
- Large working stroke of the quill
- Rough, fine and maschine shift-out of the spindle quill
- Possibility of horizontal machining - swivelling of spindle by 90°
- Simple operation
- Central lubrication system
- Compact maschine design
- Modern styling and consummate surface finish through oil-resistant varnishes
Standard Version:
- Table size 300 x 1300 mm
- Frequency convertor in spindle drive
- Maschine shift-out of the quill
- Automatic feeds X,Y,Z (stepless) – in one step
- Handwheels in axes X,Y with measuring dials - dividing 0,05 mm
- Handwheel in axis Z with measuring dial - dividing 0,02 mm
- Electrical equipment for 400V/50 cycles
- Paint of machine – blue/grey RAL 5010/RAL 9002
- Worklighting
- Working space guard
- Safety guard
Optional version:
- Inch version
- Other electrical standards than 400V/50 cycles
- Paint in other coloured shade
- Machine equipped with digital read-out
- Pneumatic tool clamping
- Stepless feeds in two steps through frequency convertor, two steps gear box
