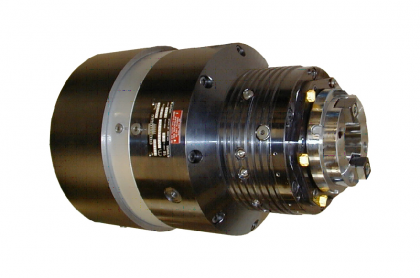

Milling Heads / FX 300-04
up to 8,000 R.P.M. / 20 kW / 405 Nm
- manual, semi-automatic or automatic clamping onto the machine
- increases spindle speed by the ratio 1:4 to optimize use of cutting tool conditions
Suitable for these machines:
- WHN-13 CNC
- MAXIMA
- WRD 130/150 CNC
- WRD 170 CNC
| Spindle Taper | CAT 50 | ISO-50 / HSK 100 | ||
| Speed Ratio (increase) | 1 : 4 | 1 : 4 | ||
| Spindle Speed Max n1 | 1/min | 8 000 | 1/min | 8 000 |
| Spindle Speed Max n2 | 1/min | 6 000 | 1/min | 6 000 |
| Spindle Speed Max n3 | 1/min | 4 800 | 1/min | 4 800 |
| Power Transmitted Max. | kW | 20 | kW | 20 |
| Spindle Torque Max. | ftlb | 298.7 | Nm | 405 |
| Total Weight | lb | 243 | kg | 110 |
