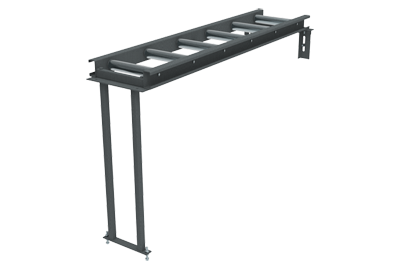

Conveyors / M System
- These conveyors are designed for light and medium use.
- The conveyors are fitted with steel rollers 200 or 280 mm wide.
- Individual modules are 1.5 and 3 m long and allow for selection of an optimum length.
- Adjustable leg height ranges from 875 to 915 mm.
- There are necessary connecting and interconnecting pieces available allowing installation to whole range of machines.
| roller width | number of legs | number of rollers | roller diameter | total length [mm] | load-carrying capacity [kg/1m] | |
|---|---|---|---|---|---|---|
| M 200 / 1,5m | 200 | 1 | 6 | 50 | 1500 | 200 |
| M 280 / 1,5m | 280 | 1 | 6 | 50 | 1500 | 200 |
| M 200 / 3m | 200 | 2 | 12 | 50 | 3000 | 200 |
| M 280 / 3m | 280 | 2 | 12 | 50 | 3000 | 200 |
Accessories for conveyors of the M System
MA – metal sheet cover between individual rollers
Prevents short workpieces from falling through.
MB – vertical idle rollers
Enables precise guiding of the material into the vice and prevents the material from falling off of the conveyor.
MR 280 – Height-adjustable leg with roller
- Adjus adjustable leg height ranging from 800 mm to 1019 mm.
- MR 280 is designed for light use.
- Load-carrying capacity is 45 kg.
