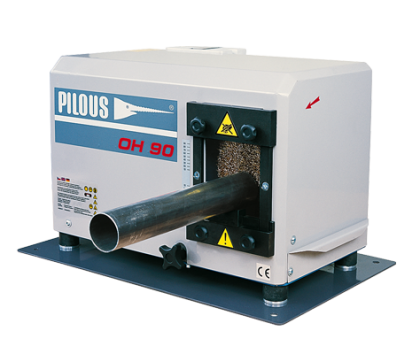

OH Deburring Machines / OH 90
Simple and very fast deburring of all kinds of sections (including the internal edges) or full material by a rotary steel brush. High quality construction of the machine along with a three-phase motor make use of the machine possible in specialized workshops as well as in production plants. Compared to manual deburring it reduces the required time and hence reduces your costs. While maintaining incomparably higher and balanced quality of deburring.
We recommend using stainless steel brush for stainless steel products. Example of the difference between manual deburring (including internal edges) and OH 90
| Hollow section 60 x 60 x 2 mm: | manual deburring - 32 s | machine OH 90 - 8 s |
| Tube diameter 50 x 2 mm: | manual deburring - 21 s | machine OH 90 - 4 s |
| Connection | 400 V, 50 Hz |
| Total wattage | 2,2 kW |
| Rpm | 1.400 r./1 min. |
| Maximum workpiece dimension | 90 x 90 mm |
| Number of deburring brushes | 1 - 3 pcs |
| Machine dimensions | 530 x 400 x 350 mm |
| Machine weight | 51 kg |
