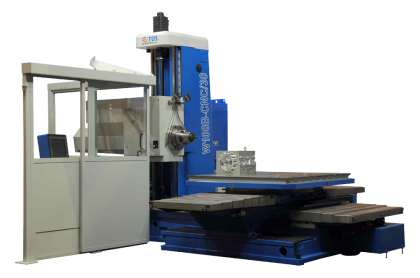

Horizontal Boring Mill – Table Type
Features
• contouring horizontal boring machine
• fixed column, crosswise travelling table
• 4 linear axes, rotary table
• sliding workspindle
• machine designed for universal application in engineering production
• suitable for roughing as well as for finishing
• optionally can be fitted with tool magazine with manipulator (ATC), tool cooling kit (CHZ), cooling through spindle axis (CHOV) or oil-mist cooling (CHM)
Optionally
Control System
• SIEMENS SIN 840D SL + handwheel
• SIEMENS drives and motors
FACELIFT
• extended cover system of the machine
• Y axis – complete coverage of the group column/headstock including the integrated operator housing
• Z axis – complete coverage of the guideways
• B axis - coolant drain system (for the CHZ and CHOV-K design)
• Y axis travel increased by 70mm up to 1290mm
ATC - Automatic Tool Changer
• ATC facility is a separate unit
• magazine with servodrive for tool beds positioning
• changer driven electrically / pneumatically
CHZ - Tool Cooling Kit
• tool cooling kit with jets on headstock front side
• separate cooling unit – tank with pump, level gauge, pressure test
• tank volume 100 l
• maximal pressure 4 bar / 40 l/min
• setup for tool cooling always included – distribution pipes, jets
CHOV-K - Cooling Through Spindle Axis - Fluid
• once production has started is not possible to add into configuration
• separate cooling unit with filter and magnetic swarf separator required
• maximal pressure 40 bar – emulsion - tank volume 1000 l
• maximal pressure 80 bar – oil - tank volume 100 l
• both emulsion and oil may not be used for one particular machine
• other necessary alterations to machine and CE features depend on the required cooling pressure
CHOV-V - Cooling Through Spindle Axis - Air
• once production has started is not possible to add into configuration
• maximal pressure 5 bar
CHOV-M - Cooling Through Spindle Axis - Oil Mist
• once production has started is not possible to add into configuration
• separate programmable cooling unit
• maximal pressure 5 bar
CHM - Oil Mist Cooling
• can be added to machine at any time
• easy to assemble
• easy to use
